LUMOS

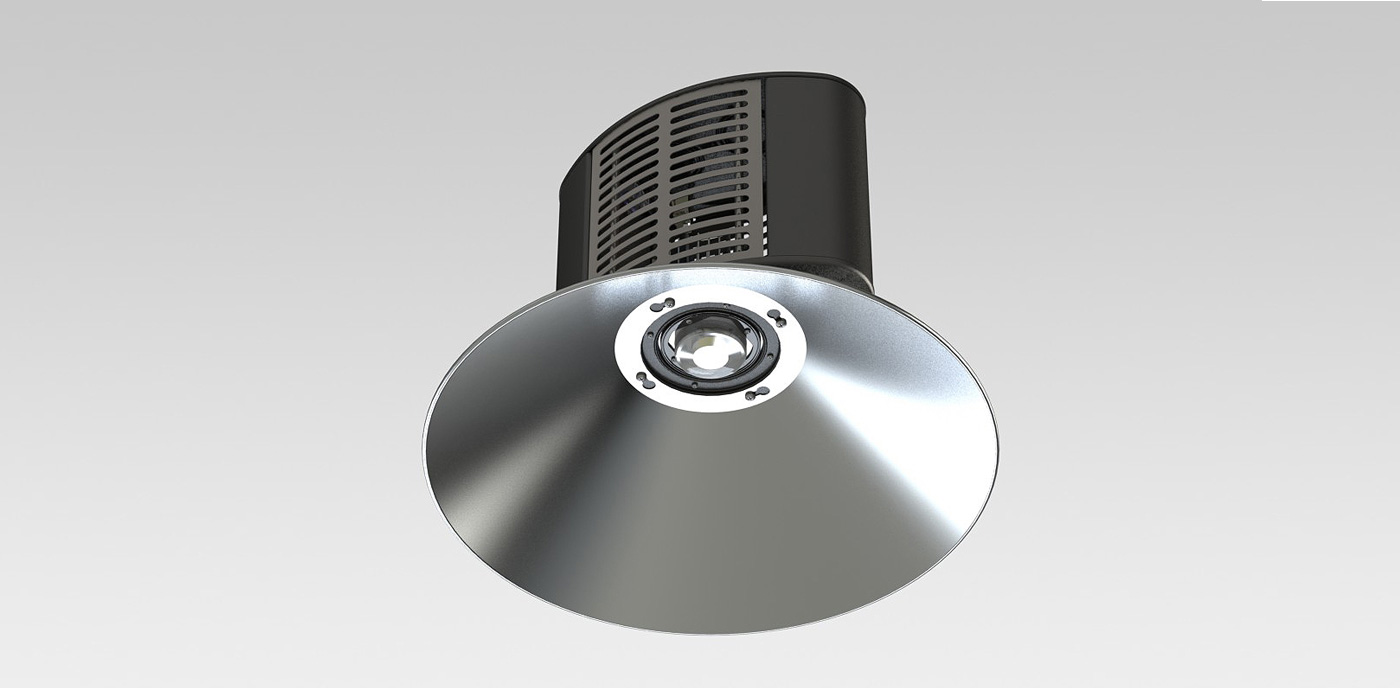

Grunzell LUMOS is a high performance IP65 LED high bay light. Designed and engineered to provide optimum lumen performance and durability. It is used for a wide range of industrial and commercial area lighting applications like factories, auditoriums, warehouses, sports halls and supermarkets.

Product Description

Die cast powder coated aluminium housing with built in IP67 LED driver and highly advanced passive hybrid cooling system providing excellent thermal management.

Line Voltage 100V ~ 240V 50/60Hz. Plug-twist cable connector for easy installation and maintenance. High Power COB LED with silicon lens optic. Weight 6.8kg
Standard Configuration
Colour Temperature (k)3000K4000K5000K6500K
Light DistributionMediumWide
Colour FinishWhite (RAL 9016)Silver Grey (RAL 9006)Black (9005
Wattage120W150W180W
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
HBL01.3012.36.x.xx120W3000K16,062 lm36°
HBL01.4012.36.x.xx120W4000K16,476 lm36°
HBL01.5012.36.x.xx120W5000K16,669 lm36°
HBL01.6512.36.x.xx120W6500K16,971 lm36°
HBL01.3012.73.x.xx120W3000K16,062 lm73°
HBL01.4012.73.x.xx120W4000K16,476 lm73°
HBL01.5012.73.x.xx120W5000K16,669 lm73°
HBL01.6512.73.x.xx120W6500K16,971 lm73°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
HBL01.3015.36.x.xx150W3000K20,183 lm36°
HBL01.4015.36.x.xx150W4000K20,703 lm36°
HBL01.5015.36.x.xx150W5000K20,946 lm36°
HBL01.6515.36.x.xx150W6500K21,325 lm36°
HBL01.3015.73.x.xx150W3000K20,183 lm73°
HBL01.4015.73.x.xx150W4000K20,703 lm73°
HBL01.5015.73.x.xx150W5000K20,946 lm73°
HBL01.6515.73.x.xx150W6500K21,325 lm73°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
HBL01.3018.36.x.xx180W3000K22,830 lm36°
HBL01.4018.36.x.xx180W4000K23,419 lm36°
HBL01.5018.36.x.xx180W5000K23,694 lm36°
HBL01.6518.36.x.xx180W6500K24,122 lm36°
HBL01.3018.73.x.xx180W3000K22,830 lm73°
HBL01.4018.73.x.xx180W4000K23,419 lm73°
HBL01.5018.73.x.xx180W5000K23,694 lm73°
HBL01.6518.73.x.xx180W6500K24,122 lm73°
