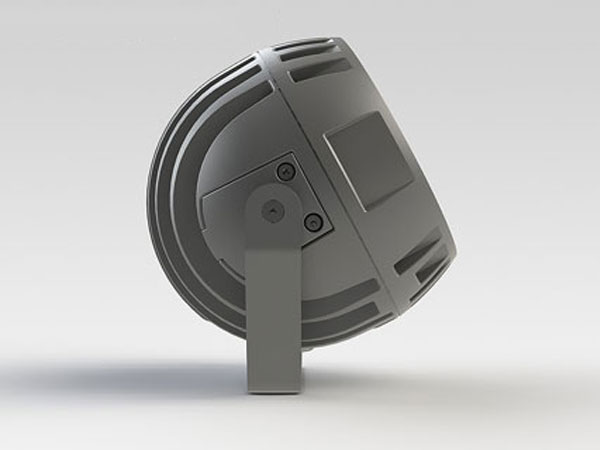

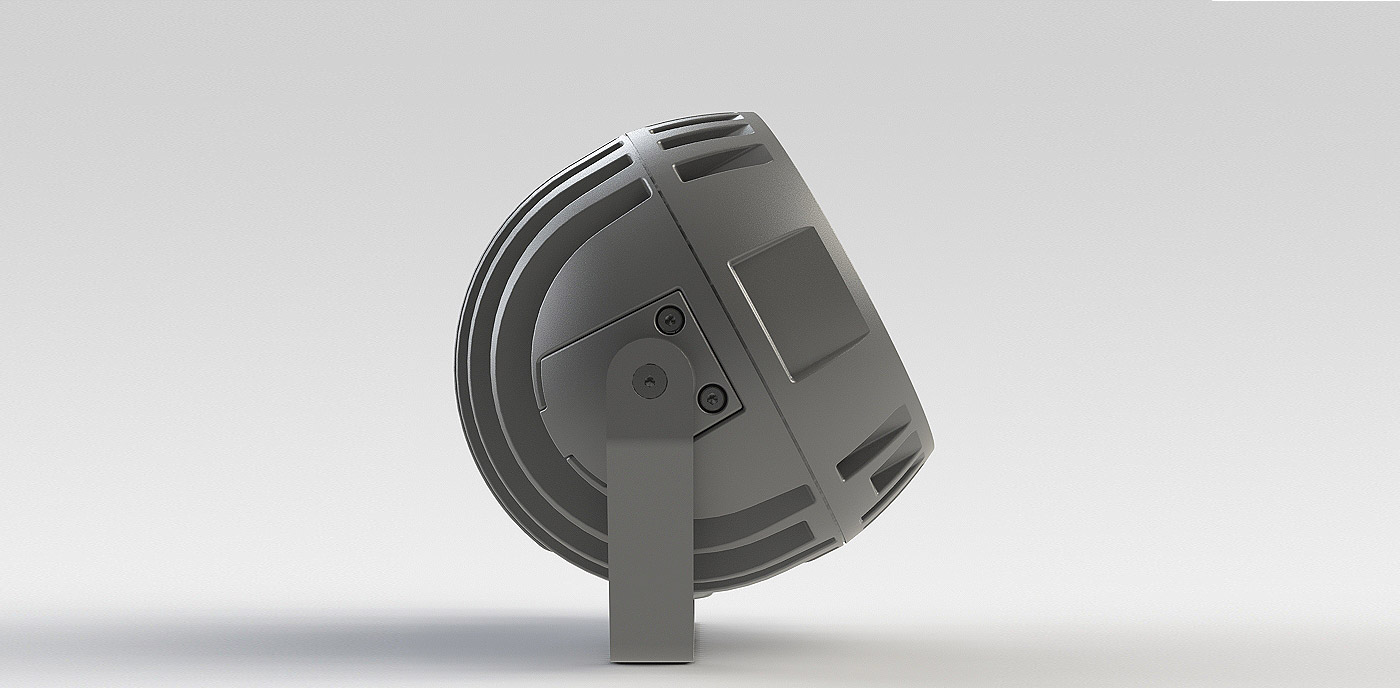

LEONA SPOT MIDI

Compact LED Projector for axially symmetrical light distribution. Surface powder coated corrosion resistant die-cast aluminium housing with remote LED driver. Highly specular reflector for wide, medium and narrow beam characteristics.

Product Description

Housing compartment made of die cast aluminium acting as a heat sink up to 55W. All screws made by stainless steel with M12 cable entry and one metre connecting cable. Tempered safety glass cover with powder coated aluminium stirrup. LED engine for 14W to 25W and 40W to 55W.

Line voltage 100 ~ 270V ~ 50/60Hz

High power COB LED with highly specular aluminium coated PC reflector.

Protection class: IP65 dust proof and water jet proof with featured GORE®Vent to protect the internal system from moisture.

Weight 1.6kg
Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K
Light DistributionSpotMediumWideLinear Spread
Colour FinishWhite (RAL 9016)Silver Grey (RAL 9006)Black (9005)
Wattage14W / 25W / 40W / 55W
Optional AccessoriesSnootWide SnootGlare ShieldVisorLinear Spread LensColour Filter
Mounting AccessoryIP65 Gear BaseCast Mounted StirrupGround Stake
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL05.2701.08.x.xx14W2700K1683 lm8°
PJL05.3001.08.x.xx14W3000K1756 lm8°
PJL05.4001.08.x.xx14W4000K1802 lm8°
PJL05.5001.08.x.xx14W5000K1822 lm8°
PJL05.2701.13.x.xx14W2700K1789 lm13°
PJL05.3001.13.x.xx14W3000K1865 lm13°
PJL05.4001.13.x.xx14W4000K1912 lm13°
PJL05.5001.13.x.xx14W5000K1936 lm13°
PJL05.2701.22.x.xx14W2700K1789 lm22°
PJL05.3001.22.x.xx14W3000K1865 lm22°
PJL05.4001.22.x.xx14W4000K1912 lm22°
PJL05.5001.22.x.xx14W5000K1936 lm22°
PJL05.2701.47.x.xx14W2700K1789 lm47°
PJL05.3001.47.x.xx14W3000K1865 lm47°
PJL05.4001.47.x.xx14W4000K1912 lm47°
PJL05.5001.47.x.xx14W5000K1936 lm47°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL05.2702.08.x.xx25W2700K2801 lm8°
PJL05.3002.08.x.xx25W3000K2923 lm8°
PJL05.4002.08.x.xx25W4000K3000 lm8°
PJL05.5002.08.x.xx25W5000K3033 lm8°
PJL05.2702.13.x.xx25W2700K3010 lm13°
PJL05.3002.13.x.xx25W3000K3138 lm13°
PJL05.4002.13.x.xx25W4000K3217 lm13°
PJL05.5002.13.x.xx25W5000K3256 lm13°
PJL05.2702.22.x.xx25W2700K3010 lm22°
PJL05.3002.22.x.xx25W3000K3138 lm22°
PJL05.4002.22.x.xx25W4000K3217 lm22°
PJL05.5002.22.x.xx25W5000K3256 lm22°
PJL05.2702.47.x.xx25W2700K3010 lm47°
PJL05.3002.47.x.xx25W3000K3138 lm47°
PJL05.4002.47.x.xx25W4000K3217 lm47°
PJL05.5002.47.x.xx25W5000K3256 lm47°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL05.2704.11.x.xx40W2700K4973 lm11°
PJL05.3004.11.x.xx40W3000K5194 lm11°
PJL05.4004.11.x.xx40W4000K5327 lm11°
PJL05.5004.11.x.xx40W5000K5390 lm11°
PJL05.2704.16.x.xx40W2700K5233 lm16°
PJL05.3004.16.x.xx40W3000K5457 lm16°
PJL05.4004.16.x.xx40W4000K5597 lm16°
PJL05.5004.16.x.xx40W5000K5662 lm16°
PJL05.2704.26.x.xx40W2700K5233 lm26°
PJL05.3004.26.x.xx40W3000K5457 lm26°
PJL05.4004.26.x.xx40W4000K5597 lm26°
PJL05.5004.26.x.xx40W5000K5662 lm26°
PJL05.2704.52.x.xx40W2700K5233 lm52°
PJL05.3004.52.x.xx40W3000K5457 lm52°
PJL05.4004.52.x.xx40W4000K5597 lm52°
PJL05.5004.52.x.xx40W5000K5662 lm52°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL05.2706.11.x.xx55W2700K6420 lm11°
PJL05.3006.11.x.xx55W3000K6705 lm11°
PJL05.4006.11.x.xx55W4000K6877 lm11°
PJL05.5006.11.x.xx55W5000K6958 lm11°
PJL05.2706.16.x.xx55W2700K6772 lm16°
PJL05.3006.16.x.xx55W3000K7062 lm16°
PJL05.4006.16.x.xx55W4000K7244 lm16°
PJL05.5006.16.x.xx55W5000K7328 lm16°
PJL05.2706.26.x.xx55W2700K7023 lm26°
PJL05.3006.26.x.xx55W3000K7324 lm26°
PJL05.4006.26.x.xx55W4000K7512 lm26°
PJL05.5006.26.x.xx55W5000K7599 lm26°
PJL05.2706.52.x.xx55W2700K7023 lm52°
PJL05.3006.52.x.xx55W3000K7324 lm52°
PJL05.4006.52.x.xx55W4000K7512 lm52°
PJL05.5006.52.x.xx55W5000K7599 lm52°
