Ceterra

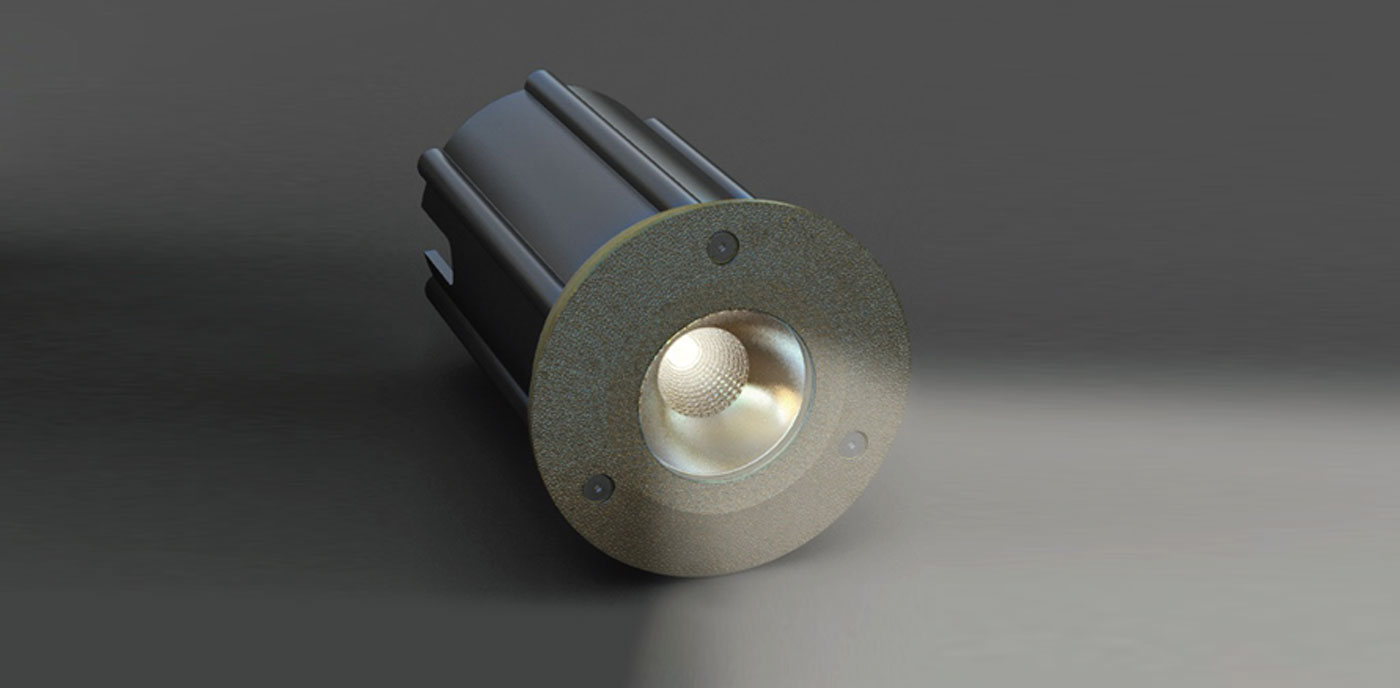

CETERRA is a high performance 10W LED Inground luminaire with advanced ceramic housing. Suitable for installation in ground surfaces for uplighting trees, building facades, statuary, flags, water features etc.

Product Description

Three piece construction consisting of composite sleeve and ceramic housing, which acts as a super-efficient heat sink for the LED module (patent pending) and is impervious to water, soil contaminants, road salt and temperature changes. All external fasteners and thread inserts are marine grade 316 stainless steel. Gaskets are one piece moulded silicone. Lens ring is made of injection moulded LEXAN polycarbonate material impervious to normal chemicals, salts, UV radiation, temperature changes.

Light source by high performance COB LED that is mounted directly to the ceramic heat sink. Optic is made of high purity anodised reflector with 75° beam spread. The lens is made of low iron content, water clear tempered glass with high light transmission qualities, temperature changes, etc. Power is provided by a remote 36V constant voltage driver. An internal low voltage DC/DC driver ensures uniform light level without any visible voltage drop. Protection Class: IP67. Totally protected from dust and protected against the effect of immersion between 15cm and 1metre

Standard Configuration
Colour Temperature (k)2700K3000K4000K
Light DistributionWide
Colour FinishLEXAN polycarbonateStainless SteelBronze
Wattage10W
Optional AccessoriesLinear Spread lensAssymetrical LensHoneycomb Louvre
Mounting Accessory
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
IGL01.2701.75.xx.xx10W2700K1549 lm75°
IGL01.3001.75.xx.xx10W3000K1615 lm75°
IGL01.4001.75.xx.xx10W4000K1656 lm75°
